Float Switch brass

  • Application of Engler level switches in almost all kind of fluids
  • Recording of filling levels in plant engineering, mechanical engineering, hydraulic power packs, compressors, cooling systems, power plants and other power systems
  • Sliding tube in brass
  • Very large choice of models and designs
  • Customized solutions regarding connection, mounting, material, function…..
  • Up to 4 switching points as N.C. contact, N.O. contact or changeover contact
  • Temperature switch or temperature sensor available on request



SSM...1

Data sheet

SSM1.S1

  • Sliding tube in brass
  • Terminal box
  • Float material selectable
  • ...

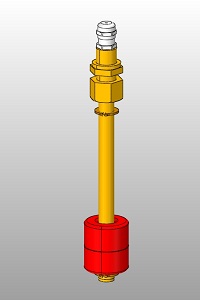

SSM...2

Data sheet

SSM2.S1

  • Sliding tube brass
  • Connection cable
  • Float material selectable
  • Bottom mounting
  • ...



SSM...3

Data sheet

SSM3.S1

  • Terminal box
  • Sliding tube in brass
  • Stilling tube in brass
  • Top mounting
  • ...

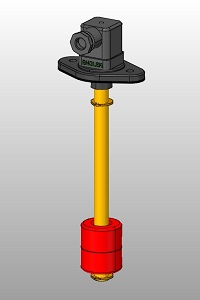

SSM...5

Data sheet

SSM5.S1

  • Connection 3-pole + protective conductor according to DIN
  • Sliding tube in brass
  • Oval flange mounting material PA
  • ...



SSM...7

Data sheet

SSM7.S1

  • Sliding tube brass
  • Terminal box
  • Mounting 1 1/2”
  • Float material selectable
  • ...

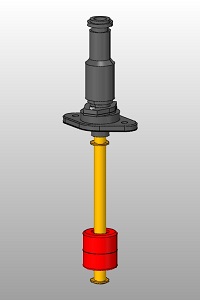

SSM...10

Data sheet

SSM10.S1

  • Connection 7-pole + protective conductor according to DIN 175201-804
  • Sliding tube in brass
  • Oval flange mounting material PA
  • ...



SSM...21

Data sheet

SSM21.S1

  • Connection 3-pole + protective conductor according to DIN
  • Sliding tube in brass
  • Round flange mounting
  • ...

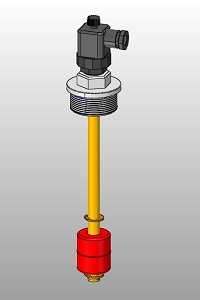

SSM...26

Data sheet

SSM26.S1

  • Sliding tube brass
  • Plug-type connector 3-pole DIN
  • Float material selectable
  • Mounting threaded connection
  • ...



SSM...45

Data sheet

SSM45.S1

  • Plug-type connector M12x1
  • Sliding tube in brass
  • Oval-flange mounting material PA
  • ...

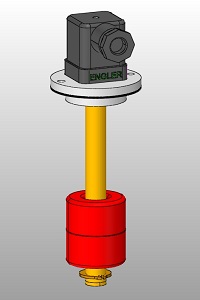

SSM...81

Data sheet

SSM81.S48

  • Connection 3-pole+ protective conductor according to DIN
  • Sliding tube in brass
  • Round flange mounting ø 52
  • ...

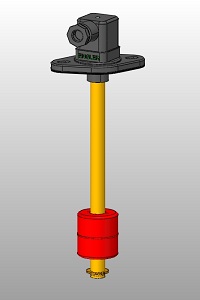

SSM...108

Data sheet

SSM108.S1

  • Connection 3-pole + protective conductor according to DIN 45°
  • Sliding tube in brass
  • Mounting oval slotted flange
  • ...
