Analogue level and temperature measurement in brass

  • The use of analogue level and temperature measuring devices is possible in almost all kind of fluids.
  • The combined device is used for example in shipbuilding, off-shore, petrochemical, plant construction, mechanical engineering, hydraulic power packs, cooling systems, power plants and in other energy systems.
  • Sliding tube in brass
  • Large selection of designs.
  • Individual solutions of connection, mounting, material, functiona...
  • Measuring principle reed chain in the resolutions 2.5mm; 5mm; 10mm
  • Signal output 4-20mA, 0-10V or resistance potentiometer function.
  • Device versions with level and temperature display

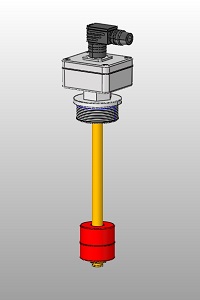

AST-1...

Data sheet

AST 1 Messing

  • Sliding tube in brass
  • Terminal box with 3-Pole connector
  • Float material PP
  • ...



AST-50...

Data sheet

AST 50 M

  • Sliding tube in brass
  • M12 connector
  • Float material NBR
  • ...

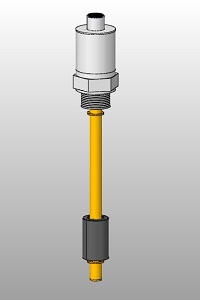

KS2010...

Data sheet

KS2010 Messing

  • Sliding tube in brass
  • M12 connector
  • Float material NBR
  • ...

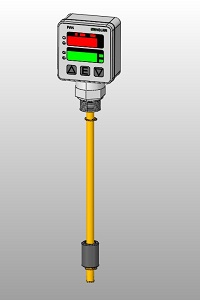

PAN-1...

Data sheet   operation manual

PAN 1

  • Two LED displays indicating level and temperature
  • Programmable outputs
  • Stem in brass
  • Housing with M12 connection
  • Float material NBR
  • ...
