Analogue Level measurement plastics

  • Application of analogue level measurement devices possible in almost all kind of fluids
  • Level measurement in petrochemical and chemical sector, pharmaceutical, plant engineering, mechanical engineering, hydraulic power packs, cooling systems, potable water treatment, power plants and other power systems
  • Sliding tube made of plastic
  • Huge choice of models and designs
  • Individual solutions concerning connection, mounting, material, function…
  • Measurement principle reed chain with 2,5mm; 5mm and 10mm resolution
  • Signal output 4-20mA, 0-10V or potentiometer
  • Temperature sensor available on request

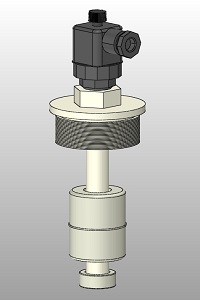

ANM-20X

Data sheet

ANM 20X

  • Sliding tube material PP
  • Plug-type connector 3-pole DIN
  • Output function selectable
  • ...

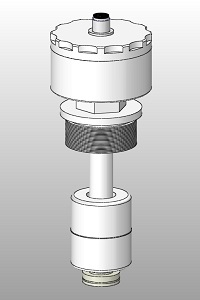

ANM-233

Data sheet

ANM 233

  • Terminal box material PVDF
  • Sliding tube material PVDF
  • Plug-type connector M12 4-pole
  • Float material PVDF
  • ...

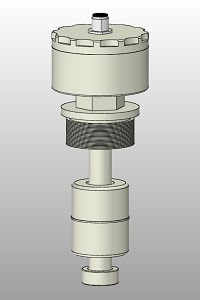

ANM-234

Data sheet

ANM 234

  • Terminal box PP
  • Sliding tube material PP
  • Plug-type connector M12 4-pole
  • Float material PP
  • ...
