Analogue level measurement brass

  • Application of analogue level measurement devices in almost all kind of fluids
  • Level indicating in shipbuilding industry, off-shore, plant engineering, mechanical engineering, hydraulic power packs, cooling systems, power plants and in other power systems
  • Sliding tube in brass
  • Huge choice of models and designs
  • Individual solutions regarding connection, mounting and function...
  • Measurement principle reed chain with 2,5mm; 5mm and 10mm resolution
  • Signal output 4-20mA, 0-10V or potentiometer
  • Temperature sensor available on request

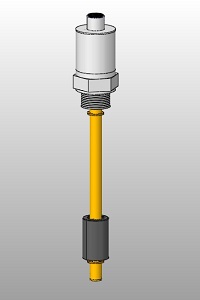

ANM-1

Data sheet

ANM 1

  • Sliding tube material brass
  • Plug-type connector 2-pole EMC
  • Float material PP
  • ...

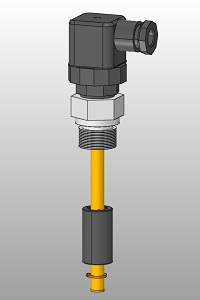

ANM-50

Data sheet

ANM 50

  • Sliding tube ø 8 mm material brass
  • Plug-type connector 3-pole DIN
  • Float material NBR
  • ...
