Suction lances



Suction lance with level detection

Data sheet

Sauglanze mit Schwimmerschalter und Tiefeneinstellung
  • Available with 1 or 2 switching points (pre warning, empty)
  • Function of both switching points can be changed by the user by turning the float
  • Both switching points can be configured in mm steps
  • No material mix for the components! Suction lance completely available in PE, PP, or PVC
  • Low extraction point
  • Immersion depth adjustable
  • Compatible with all dosing pumps and controls
  • Available with and without check valve
  • Length freely selectable
  • Length of connection cable freely selectable
  • ....

Suction lance with continuous level measurement

Data sheet

Sauglanze 3
  • With continuous level measurement
  • Resolution 5mm
  • Available with analoge output 4-20mA, 0-10V, or resistance signal
  • No material mix for the components! Suction lance completely available in PE, PP, or PVC
  • Low extraction point
  • Immersion depth adjustable
  • Compatible with all dosing pumps and controls
  • Available with and without check valve
  • Length freely selectable
  • Length of connection cable freely selectable
  • ....

Suction lances with level detection - further designs

Data sheet

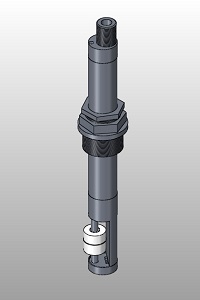

Sauglanze mit Schwimmerschalter und Tiefeneinstellung
  • Material PVC or PP
  • Integrated float switch
  • Immersion depth adjustable
  • 1 1/2“ connection thread
  • ....

Data sheet

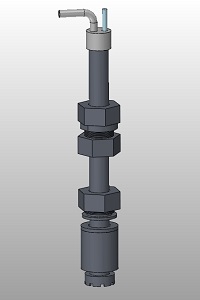

Sauglanze mit Schwimmerschalter und Tiefeneinstellung
  • Suction lance in PVC
  • Suction connection Ø6mm stainless steel, angled
  • Integrated float switch
  • Immersion depth adjustable
  • mounting via compression fitting
  • ....

Data sheet

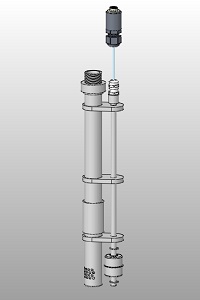

Sauglanze mit Schwimmerschalter
  • Suction lance in stainless steel
  • Integrated float switch
  • Also suitable for ATEX zone 2
  • Electrical connection selectable
  • Suction pipe connection according to customer specifications
  • ...

Suction lance without level detection

Data sheet

Sauglanze ohne Schwimmerschalter
  • Different materials
  • Various connections and mountings
  • Suction capacity according version
  • ...



A suction lance for liquid extraction is a technical tool or device specifically designed to draw liquids from tanks or containers. The suction lance typically consists of a long tube or lance that is submerged into the liquid to be extracted. At the upper end of the lance, there is a connection device that is linked to a hose or conduit. The hose is then connected to a pump or suction mechanism that draws the liquid through the lance.

Advantages

  • Efficiency: Suction lances can efficiently extract large quantities of liquids with minimal manual labor required.
  • Safety: They enable the extraction of liquids from containers or sources without direct contact with the liquid, ensuring safety for individuals involved.
  • Flexibility: Suction lances are available in various sizes and configurations, allowing them to be customized to meet the specific requirements of different applications.
  • Automation and Process Control: By combining level measurement and extraction functions, the system can be integrated into automated processes to precisely control liquid flow and maintain optimal tank levels.
  • Preventing Overfilling and Downtime: Continuous level monitoring enables the system to prevent tank overfilling, thus avoiding accidents or downtime. Additionally, it can minimize downtime by detecting low levels early.
  • Efficient Liquid Usage: Precise control of the extraction unit allows for more efficient use of liquids, saving resources and costs.

Applications and Examples

Dosing Pump Manufacturers

  • Chemical Dosing for Industrial Processes: Suction lances are used in conjunction with dosing pumps to ensure precise and controlled dosing of chemicals in industrial processes. Typical applications include adding reagents or additives in chemical reactors, mixing processes, or production facilities requiring precise chemical dosing.
  • Water Treatment and Disinfection: In water treatment plants and swimming pools, suction lances with dosing pumps are used to draw chemicals such as chlorine, pH regulators, or flocculants from storage containers and dose them into the water. This ensures effective water disinfection and clarification, making it safe for consumption or further use.
  • Wastewater Treatment and Neutralization: In wastewater treatment plants, suction lances in combination with dosing pumps are used to extract specific chemicals or acids from storage tanks and dose them into the wastewater. This contributes to neutralizing acids and removing pollutants to comply with environmental regulations before releasing treated water into the environment.

Car Wash Equipment Manufacturers

  • Chemical Dosing: Suction lances can be used in car wash systems to draw cleaning and disinfecting agents from chemical containers and dose them into the washing process. This ensures precise dosing and effective cleaning.
  • Water Treatment: Water treatment can occur before the cleaning process in car wash systems. Suction lances can be employed to extract chemicals from containers and introduce them into the water to achieve desired cleaning parameters.

Swimming Pool and Spa Builders

  • Pool Filling: Pool builders can use suction lances to transport chemicals such as water treatment agents, pH regulators, or algae control agents from storage tanks or containers into the pool and treat the water during the filling process.
  • Pool Maintenance: In pool maintenance, suction lances can be used to extract chemicals for pool cleaning or water quality adjustment from containers and introduce them directly into the pool.

Industrial Dishwasher Manufacturers

  • Chemical Dosing: In industrial dishwashers, suction lances can be used to draw cleaning and rinsing agents from containers and introduce them into the machine during the washing process.
  • Water Treatment: Suction lances can be employed in the water treatment systems of industrial dishwashers to extract chemicals from containers and treat the water according to the requirements of the washing process.

Industrial Washing Machine Manufacturers

  • Chemical Dosing: In industrial washing machines, suction lances can be used to draw cleaning and rinsing agents from containers and introduce them into the machine during the washing process.
